You are here : Home → Products → Metal Immersion Heaters

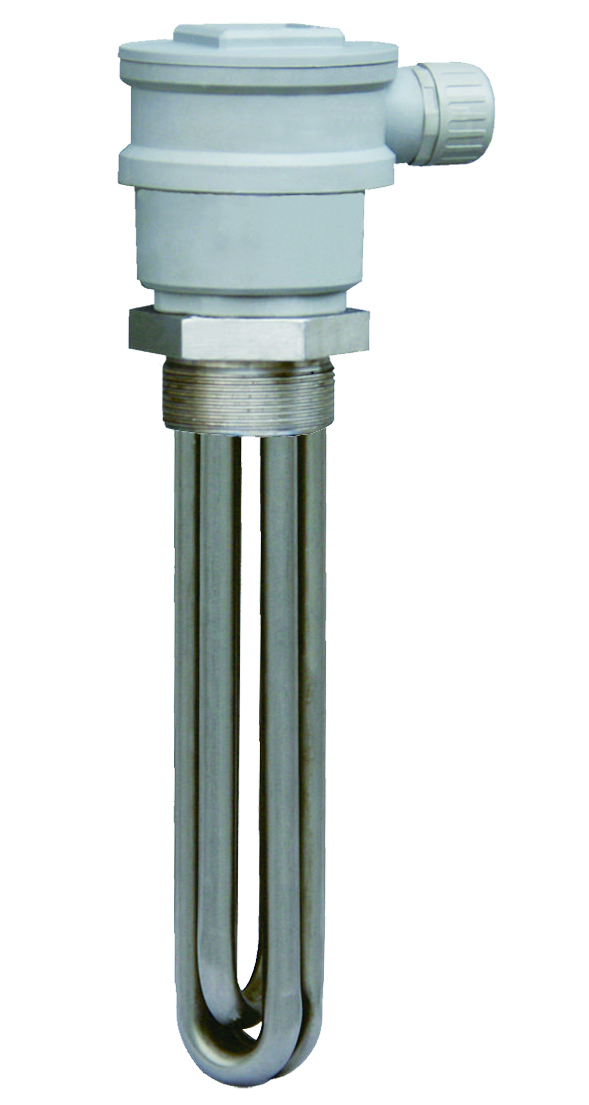

Screwed Rod Electric immersion Heaters

Spec:

Scope:

Availability: 2021 - 05 - 12

Describe:

Explain:

Screwed Rod Electric immersion Heaters304 SS316 SSTitaniumWATTSVOLTSPipe Thread(NPT)IN.Number of ElementsLengthMM./INModel No.Model No.Ship Wt.LBS./(Kg)200024048023205(8)3S22083S24083T22083T2408 5 (2.5)300024048023305(12)3S32123S34123T32123T3412 6 (3)400024048023460(18)3S42183S44183T42183T4418 7 (3.5)600024048023635(25)3S62253S64253T62253T6425 8 (4)800024048023815(32)3S82323S84323T82323T8432 10 (4.5)10000240480231015(40)3S102403S104403T102403T10440 12 (5.5)12000240480231220(48)3S122483S124483T122483T12448 14 (6)15000240480231320(52)3S152523S154523T152523T15452 15 (7)18000240480231370(54)3S182543S184...

Catalog Download

Inquiry

Features

Screwed Rod Electric immersion Heaters

					304 SS 316 SS	Titanium
WATTS	VOLTS	Pipe Thread (NPT)IN.	Number of Elements	Length MM./IN	Model No.	Model No.	Ship Wt. LBS./(Kg)
2000	240 480	2	3	205(8)	3S2208 3S2408	3T2208 3T2408	5 (2.5)
3000	240 480	2	3	305(12)	3S3212 3S3412	3T3212 3T3412	6 (3)
4000	240 480	2	3	460(18)	3S4218 3S4418	3T4218 3T4418	7 (3.5)
6000	240 480	2	3	635(25)	3S6225 3S6425	3T6225 3T6425	8 (4)
8000	240 480	2	3	815(32)	3S8232 3S8432	3T8232 3T8432	10 (4.5)
10000	240 480	2	3	1015(40)	3S10240 3S10440	3T10240 3T10440	12 (5.5)
12000	240 480	2	3	1220(48)	3S12248 3S12448	3T12248 3T12448	14 (6)
15000	240 480	2	3	1320(52)	3S15252 3S15452	3T15252 3T15452	15 (7)
18000	240 480	2	3	1370(54)	3S18254 3S18454	3T18254 3T18454	17 (8)

The screwed rod heater can be used for heating non aggressive aqueous fluids in containers, machines

and systems. Direct contact between the heating pipes and the fluid means that rapid heat transfer takes place. Depending on the surface loading permitted for the process fluid, it is also possible to achieve relatively high heating capacities combined withsmall installation dimensions.

Screwed rod heaters can be mounted quickly and easily in any orientation.

RUGGED CONSTRUCTION: Heavy wall metal sheaths and screw plug available in steel, 304 stainless steel, 316 stainless steel and titanium.

Structure of the screwed rod heaters:

The screwed rod heaters consist of three U-shaped, highly compressed tubular heating elements with a tube diameter of 12.7mm, that are soldered into a G2” threaded nipple.

CORROSION RESISTANT HEAD:

We supply the screwed rod heater

with a terminal cover (material: PP and Stainless steel 316

index of protection: IP 54).

CERTIFICATIONS: ISO9001,CE,UL and CSA

SIZES: 1000 watts to 12,000 watts.

VOLTAGES: 120 to 600 volts. Single phase standard, three phase available.

Tube Diameter:12.7mm Stardard, 8.5mm,9.5mm,11mm available

Screw Plug size:2'' thread standard,1-1/2'' thread available

We have custom-built heaters and can make any Watts,voltages with the size according to customers’ requirement

OPTIONS :(consult Our FACTORY for any installation)

We recommend temperature controls and level controls for use with this immersion heater.
