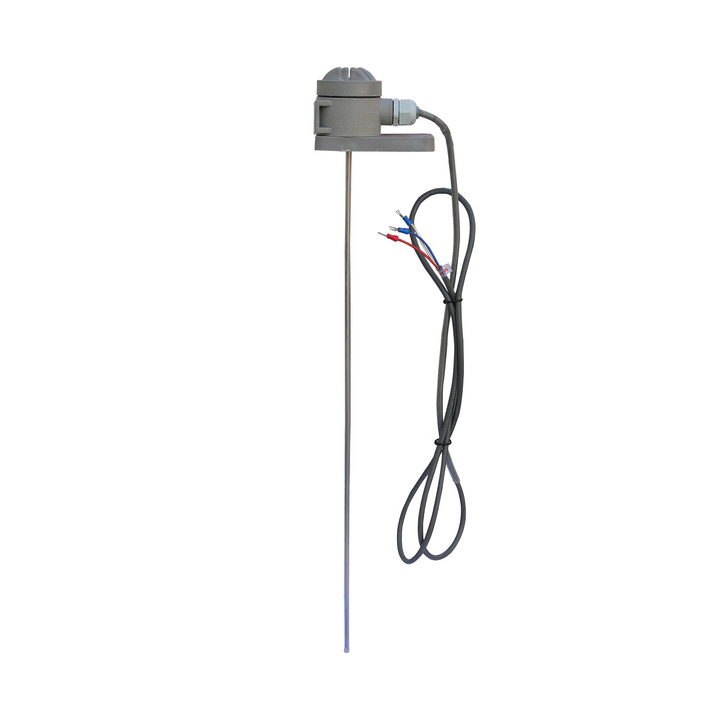

Rod Thermostats - Heating Rod Thermostats
Precise Heater Rod Thermostats are suitable for use with Single Phase to control heating in electroplating baths.
They are equipped with a 1.6 metre supply cord and standard red cap terminal casing.
The probe diameter and materials are as follows:-
| Stainless Steel: | 11 mm |
| Polypropylene: | 16 mm |
| PTFE: | 12 mm |
The temperature control probe is suitable for automatic control of a pre-set value in the process media and are suitable for heaters up to 2.3 kw single phase. For higher loads, or three phase heaters an additional contactor should be used.
The probes construction makes it ideally suited for etch, pickle and plating solutions. Its robust construction and chemical resistance ensures a long service life.
| Operating Temperature Range: | 0 to 120°C |
| Insulation: | IP64 |
To set the rod thermostat, unscrew the red cover which provides access to the temperature setting control knob. Turn until the desired temperature is opposite the arrow.
Rod Thermostat - Hairpin
Suitable for use with single phase to control heating of electroplating baths and similar solutions.
Comes complete with heavy duty terminal box and adjustable mounting blocks ready for connection.
Available in: Stainless steel, Titanium, Mild Steel or PTFE.
Alternative lengths are available to order.
The units incorporate an integral 25 amp rated thermostat unit housed with a chemically resistant, PVC coated steel terminal box, complete with quick fix brackets.
The thermostat opens on a rising temperature. Range: 25°C to 100°C. They are suitable for up to 6 kw heaters on a single phase supply. For higher loads or a three phase supply an additional contactor should be used.
The control knob is situated outside the PVC coated terminal box.
