Products Product Details

Flexible Riser Bottom PTFE Immersion Heater

Spec:
Scope:
Availability: 2021 - 05 - 12
Describe:
Explain:
Flexible Riser Bottom (Fluoropolymer) PTFE Immersion HeaterCompatible with virtually any chemistryFlexible riser, low watt density, bottom heater has Fluoropolymer (PTFE) sleeved 316 stainless elements inert to most solutions up to 212°F (100°C) and a a chemical resistance to aggressive acids! Grounded internal metal element and built-in thermal protector. Resettable P3 J-type thermocouple standard. Single phase. 1000-6000 watts, 120-600 volts.ApplicationsSurface FinishingAnodizingPrecious Metal DepositionGeneral Metal FinishingUp to 100°C (212°F) 1000 to 6,000 Watts 120 to 600 Volts PTFE sleeved 316 stainless steel Features & ValuesInert to most aqueous acid, alkaline, anodizing, & pickling solutions up to 100°C...
  • Features


Flexible Riser Bottom (Fluoropolymer) PTFE Immersion Heater


Flexible Riser Bottom PTFE Immersion Heater


Compatible with virtually any chemistry

Flexible riser, low watt density, bottom heater has Fluoropolymer (PTFE) sleeved 316 stainless elements inert to most solutions up to 212°F (100°C) and a a chemical resistance to aggressive acids! Grounded internal metal element and built-in thermal protector. Resettable P3 J-type thermocouple standard. Single phase. 1000-6000 watts, 120-600 volts.

Applications

  • Surface Finishing

  • Anodizing

  • Precious Metal Deposition

  • General Metal Finishing


Up to 100°C (212°F)


1000 to 6,000 Watts


120 to 600 Volts


PTFE sleeved 316 stainless steel



Features & Values


  • Inert to most aqueous acid, alkaline, anodizing, & pickling solutions up to 100°C (212°F)


  • Rugged, heavy wall PTFE covered stainless steel element reduces permeation. Guaranteed 100% pinhole free


  • Space saving & long service life with low Watt density design of 10 W/in2 (1.5 W/cm2)


  • Flexible riser with 4 ft. (1.2m) of continuous PTFE cable leading to vapor-resistant, flame retardant polypropylene terminal enclosure with 3 ft (.9m) flexible PVC liquid tight conduit


  • Optional patented purge feature promotes a longer heater life by reducing chemical permeation


  • Lower Watt densities available for highly viscous solutions & technical acids



Safety Features


Grounded internal metal element.

Built-in thermal protector.

Resettable  protector standard for up to 121°C (250°F).

Other options available.

Non-floating construction

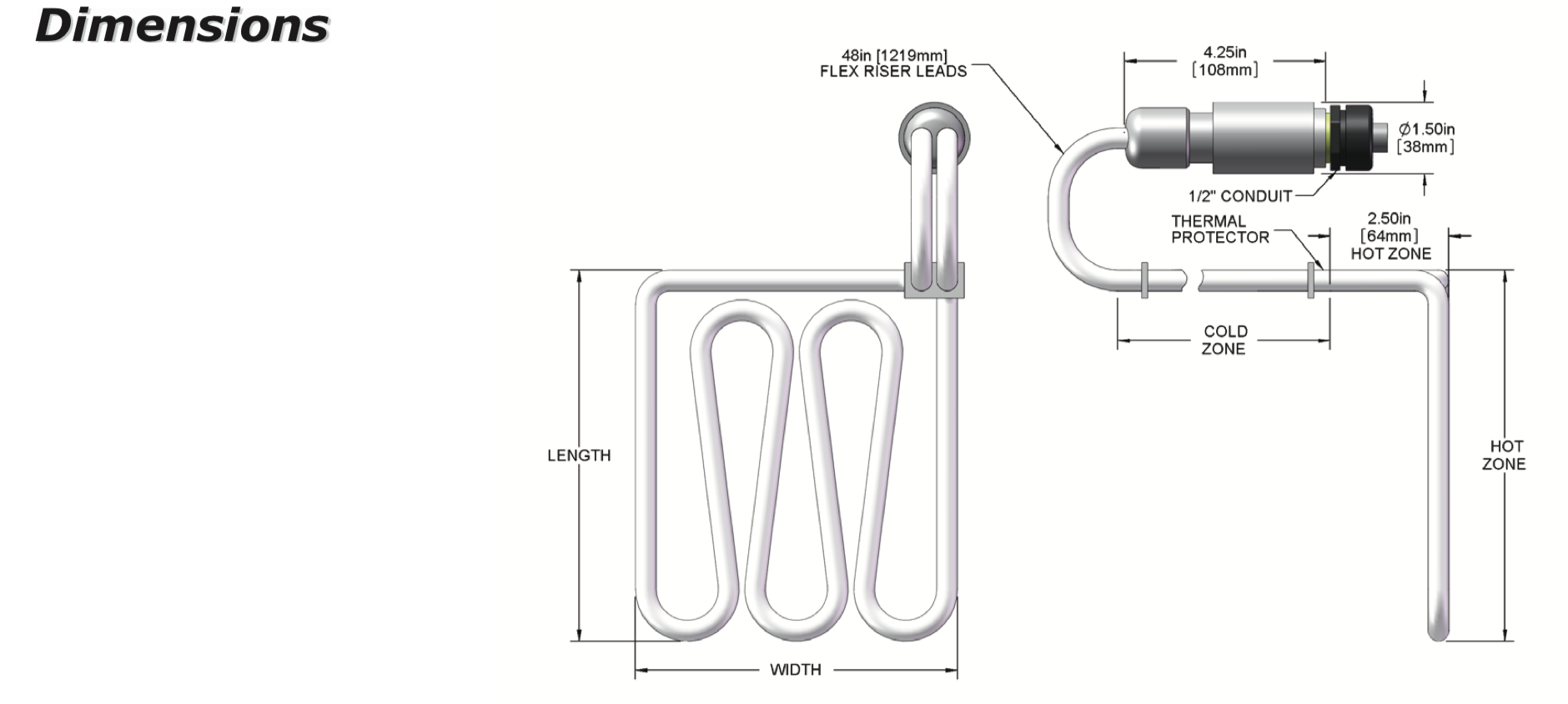

1.HXRL Flex Riser, 1000W, 4' width, 19' length

   HXRL Flex Riser, 1000W, 6' width, 13' length

   HXRL Flex Riser, 1000W, 8' width, 10' length

   Base Price: $480.00


2.HXRL Flex Riser, 2000W, 10' width, 15' length

   HXRL Flex Riser, 2000W, 12' width, 13' length

   HXRL Flex Riser, 2000W, 8' width, 19' length

   Base Price: $658.00


3.HXRL Flex Riser, 3000W, 10' width, 23' length

   HXRL Flex Riser, 3000W, 12' width, 19' length

   HXRL Flex Riser, 3000W, 14' width, 16' length

   HXRL Flex Riser, 3000W, 16' width, 14' length

   HXRL Flex Riser, 3000W, 18' width, 13' length

   Base Price: $850.00


4.HXRL Flex Riser, 4000W, 12' width, 25' length

  HXRL Flex Riser, 4000W, 14' width, 22' length

  HXRL Flex Riser, 4000W, 16' width, 19' length

  HXRL Flex Riser, 4000W, 18' width, 17' length

  HXRL Flex Riser, 4000W, 20' width, 15' length

  Base Price: $882.00


5.HXRL Flex Riser, 5000W, 12' width, 31' length

   HXRL Flex Riser, 5000W, 14' width, 27' length

   HXRL Flex Riser, 5000W, 16' width, 23' length

   HXRL Flex Riser, 5000W, 18' width, 21' length

   Base Price: $1005.00


6.HXRL Flex Riser, 6000W, 12' width, 36' length

   HXRL Flex Riser, 6000W, 14' width, 30' length

   HXRL Flex Riser, 6000W, 16' width, 26' length

   HXRL Flex Riser, 6000W, 18' width, 21' length

   Base Price: $1114.00





Flexible Riser Bottom PTFE Immersion Heater
