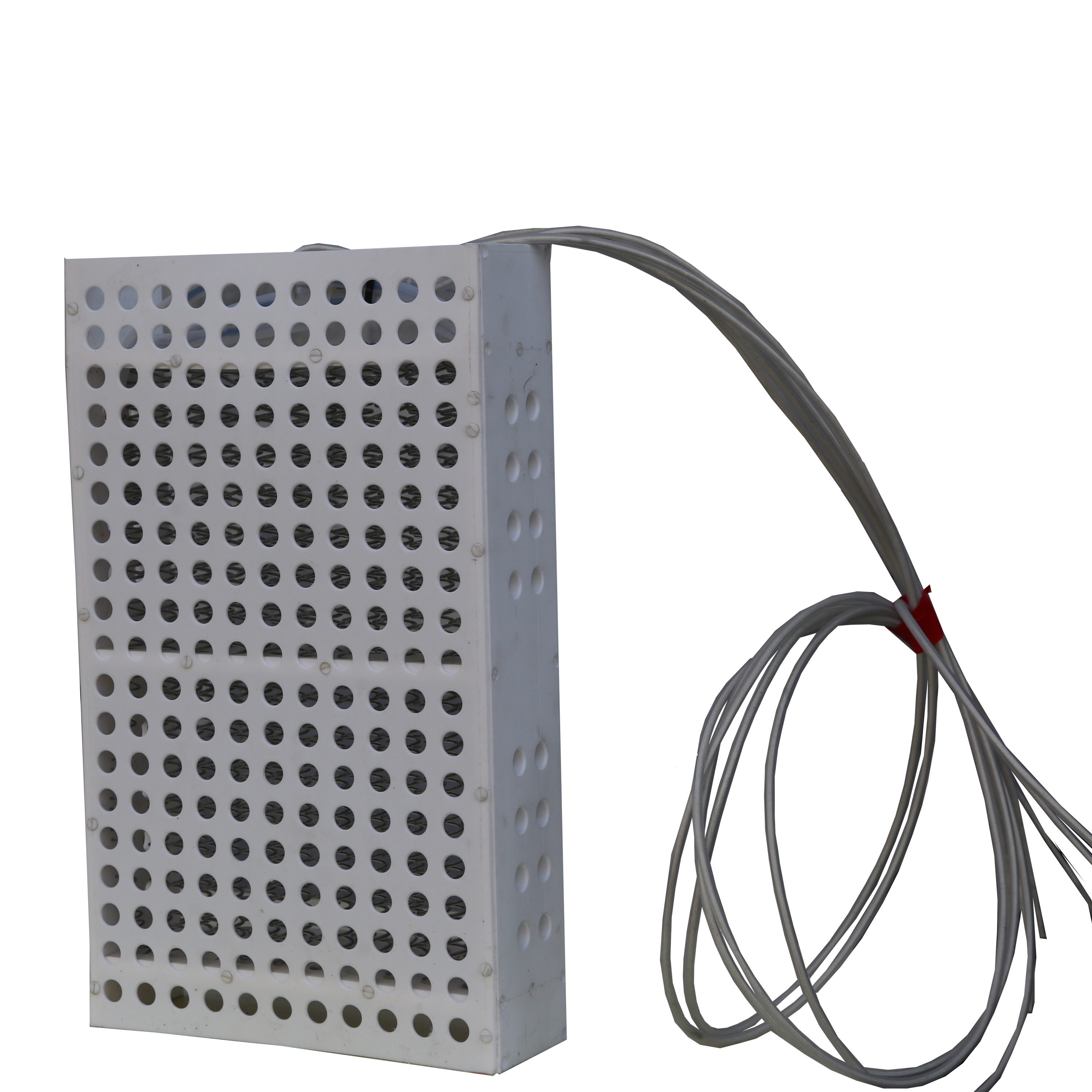

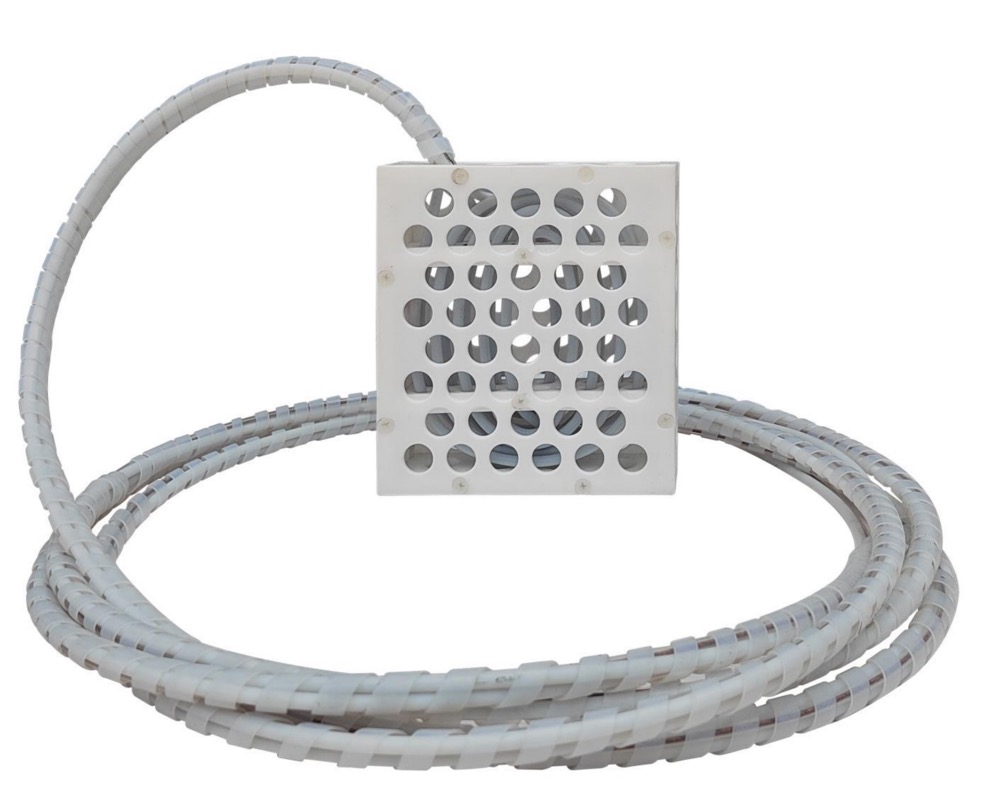

PTFE/PFA Immersion Tank Heaters
Markets
Semiconductor
Life Sciences
Applications
Fluid Heating
PRODUCT OVERVIEW
PreciseHeater's immersion tank heaters are great for heating fluid baths to a constant temperature. These heaters are ideal for use in the semiconductor, pharmaceutical, and biomedical industries. First of all, these immersion heaters provide clean heat evenly and efficiently. Furthermore, they’re compact and highly customizable. They provide a maximum process work area, and consume a minimal amount of chemicals. Moreover, wetted surfaces feature all-PFA materials, and may be used in tanks made of PVDF, PFA, or quartz. Please contact PreciseHeater with inquiries about other tank materials.
BOTH AGGRESSIVE CHEMISTRIES AND DEIONIZED WATER
These rugged and durable heaters come in grid, frame, and fence models, with outputs of 1.0 to 30.0 kW. Most importantly, they feature a low watt density (≤ 4 watts/in²) for a fast heating response. Furthermore, these heaters integrate easily into most process tanks. Provide Heateflex with your specifications and tank size, and let us build an immersion heater for you.
SAFETY FEATURES
At the heart of these immersion heaters is the patented PreciseHeater heating coil, with a efficiency of > 99% and a MTBF of more than 10 years. Moreover, a microprocessor-based temperature controller regulates the heater output. Additionally, optional safety features include both platinum and embedded ground wires, a Type-J process thermocouple, and RTD over-temperature and process thermocouples.
KEY SPECIFICATIONS
Maximum heating temperature of these immersion heaters is 200º C (392º F), with a temperature accuracy of ± 0.1º C (contingent on customer’s facilitation). Grid heaters are typically ¾” high, and frame heaters 1 ½” high. Outputs range from 1.0 to 30.0 kW (dependent on customer voltage), and from 120 VAC to 480 VAC, 1 or 3-ph (dependent on wattage).
Benefits
Ultra-Pure Design
PVDF/PFA Wetted Surfaces
Reliable Heating
Heats harsh chemicals
Max 200C Heating capability
Fully Tested
Fast Response
Low Watt Density; ≤ 4 watts/in²
Compact Design
Max power in smallest footprint
Grid Heaters – 3/4″ Height
Frame Heaters – 1-1/2″ Height
Flexible Solutions
Heaters designed to be easily integrated into most process tanks. Our customers provide us with their specifications and tank size and we can build a heater for them.
No N2 Purge Required
