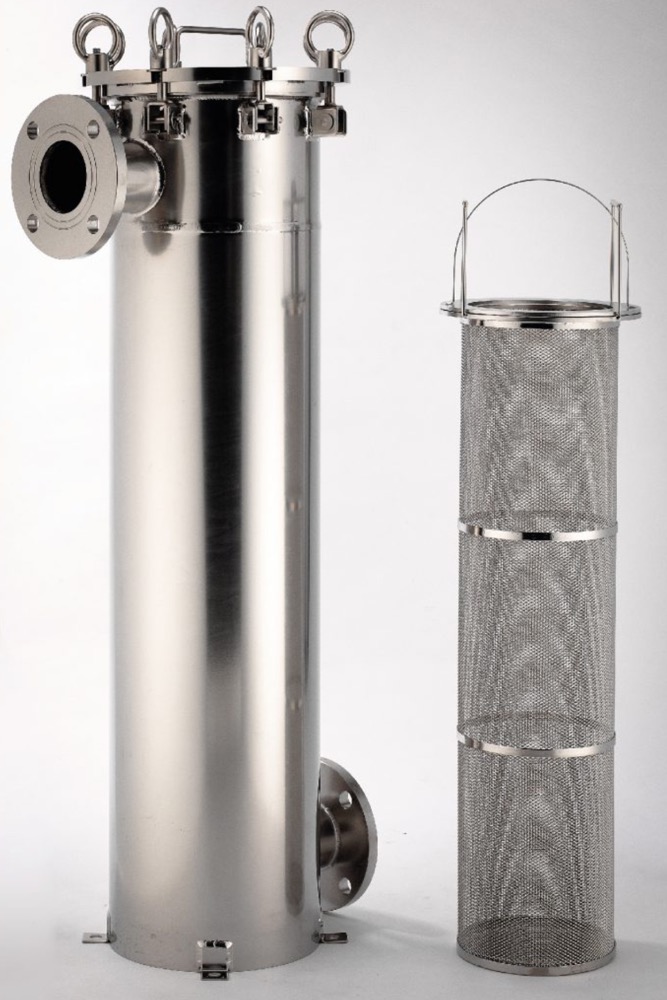

Titanium Cartridge Filter (Bag type Filter)
Many special treatments such as electroplating,chemical agents, and eelectrolysis involve corrosive materials.
In response to the needs of different industries,titanium is used to make corrosion resistant filters.
Pressure resistant. Suitable for filtering of various chemcial fluids.High filtration rate and durable.
There have a rod inside for fixing on the filter. Filter effects guaranteed.
Filter specification/entry and exit locations can be made according to the solution and installation need.
For the production of pure titanium material, corrosion resistance, this kind of filter is small in size, light weight, convenient use, large filtering area, low block rate, filtering speed, no pollution, thermal dilute stability and chemical stability is good.
This filter can filter out most of the particles, so widely used in precision filtration and aseptic technique.
Filter tube interior core can be equipped with 1, 3, 5, 7, 9, 11, 13, 15 core such as folding filter length has 10, 20, 30, 40 inches filter material of ptfe ethylene, polysulfone, nylon, polypropylene, acetate fiber.
Filter aperture are: 0.1 um and 0.22 um, um, 1 3 um, 5 um, 10 um, etc
Applicable and hydrophobic (gas) and hydrophilic liquid (for day) filter, can choose according to need.
Reduced cost of ownership: The housing design eliminates the need to replace the filter housing when the cartridge is replaced.
Spin-on ring assembly not only ensures a positive seal every time, but it also enables quick and easy cartridge replacement with no damage to the housing o-ring. Housing collar retainer ring and filter cartridge clip substantially reduce cartridge maintenance clearance space.
SPECIFICATIONS
Temperature Range: Up to 260º C
Continuous at 2.75 bar (40 PSI).
100% heavy wall titanium wetted surfaces
End cap mounting holes
Filter body slides on and locks into position by means of a spin-on ring assembly (spanner wrench included)
Able to be mounted upright or inverted (mounting bracket available)
