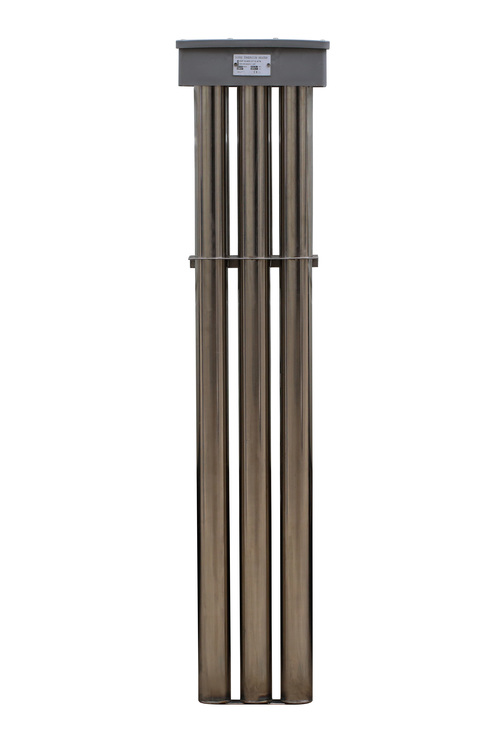

SmartOne PTC Triple tube Over the Side Heater :
SmartOne heaters' elements are PTC positive temperature coefficient semiconductors – making the heaters self-limiting. That is, they reach a set maximum sheath temperature (which is below the ignition point of most combustible materials), meaning they are especially safe for process applications.
WATTS | VOLTS | Hot Zone MM/IN. | Overall MM/IN. | 304SS 316SS | Titanium | Ship Wt. Lbs./(Kg) |
3000 | 240 480 | 180(7) | 280(11) | S3SP3211 S3SP3241 | S3TP3211 S3TP3241 | 21(9.5) |
6000 | 240 480 | 330(13) | 430(17) | S3SP6217 S3SP6417 | S3TP6217 S3TP6417 | 30(13.6) |
9000 | 240 480 | 460(18) | 585(23) | S3SP9223 S3SP9423 | S3TP9223 S3TP9423 | 33(15) |
12000 | 240 480 | 610(24) | 735(29) | S3SP12229 S3SP12429 | S3TP12229 S3TP12429 | 39(17.7) |
15000 | 380 480 | 760(30) | 890(35) | S3SP15435 | S3TP15435 | 45(20.5) |
18000 | 380 480 | 890(35) | 1040(41) | S3SP18441 | S3TP18441 | 51(23) |
24000 | 380 480 | 1040(41) | 1195(47) | S3SP24447 | S3TP24447 | 65(29) |
27000 | 380 480 | 1195(47) | 1350(53) | S3SP27453 | S3TP27453 | 70(32) |
2400 | 240 480 | 180(7) | 280(11) | S3SP2.4211 S3SP2.4411 | S3TP2.4211 S3TP2.4411 | 21(9.5) |
4800 | 240 480 | 330(13) | 430(17) | S3SP4.8217 S3SP4.8417 | S3TP4.8217 S3TP4.8417 | 30(13.6) |
7200 | 380 480 | 460(18) | 585(23) | S3SP7.2423 | S3TP7.2423 | 33(15) |
9600 | 380 480 | 610(24) | 735(29) | S3SP9.6429 | S3TP9.6429 | 39(17.7) |
12000 | 380 480 | 760(30) | 890(35) | S3SP12435 | S3TP12435 | 45(20.5) |
14400 | 380 480 | 890(35) | 1040(41) | S3SP14.4441 | S3TP14.4441 | 51(23) |
16800 | 380 480 | 1040(41) | 1195(47) | S3SP16.8447 | S3SP16.8447 | 70(32) |
LONG ELEMENT LIFE:
• PTC heater element lasts longer than conventional heaters.
• Will not burn out if run in air.
• Will not burn out due to scale or sludge buildup.
SAFE DESIGN:
Heater self limits its maximum operating temperature to 250 Celsius degree. This is lower than the ignition point of most plastics.
Will not melt tanks when a 1/2' (12mm) minimum distance is maintained.
Overtemperature protection devices are not required.
Safety is built-in, not added on.
Metal-grounded construction (earth ground).
Non-floating construction.
SIZES: 2,400 watts (2.4KW) to 18,000 watts (18KW).
VOLTAGES::
Three voltage ranges available: 200-240 volt, and 380-480 volt.
Heater is available in single or three phase power.
CORROSION RESISTANT HEADS: Vapor resistant, flame retardant polypropylene terminal enclosures each with 3-foot (.9m) flexible PVC liquid tight conduits.
OUTSTANDING PERFORMANCE:
Watt densities of 4 watts/cm2 ensure long service life.
Auto-stabilizing solid state element prevents hot spots and ensures uniform heating.
Heater derates itself in highly viscous and high temperature solutions. Consult factory for sizing assistance.
CHEMICALLY RESISTANT:
For use in most aqueous alkaline, electroplating and rinse solutions. Check our Solution Guide or with your chemical supplier for recommended sheath material. Available in:
304 stainless steel
316 stainless steel
Titanium
CERTIFICATIONS: UL and CE.
Consult factory for the following:
Longer wire and conduit lengths.
Extended cold zones.
Temperature and level controls sized to match the heater.
We recommend temperature controls and level controls for use with this immersion heater.
