Standard Flange Immersion Heaters

Spec:

Scope:

Availability: 2021 - 05 - 12

Describe:

Explain:

Standard Flange Immersion HeatersPreciseHeater® flange heaters are easy to install and maintain. Designed for heating liquids and gases in tanks and pressure vessels, flange immersion heaters are ideal for applications requiring higher kilowatts. You can custom configure your flange heater with 3 inch through 14 inch ANSI flange sizes via Preciseheater’s Visual Designer tool on preciseheater.com. The tool will guide you through all of the steps required to quickly configure and order your heater.Preciseheate flange heaters are made with PRECISEHEATER™ tubular elements brazed or welded to a flange.Performance Capabilities• Watt densities up to 120 W/in2 (18.6 W/cm2)• UL® and CSA component recognition up to 480VAC • Alloy ...

Catalog Download

Inquiry

Features

Standard Flange Immersion Heaters

PreciseHeater® flange heaters are easy to install and maintain.

Designed for heating liquids and gases in tanks and pressure vessels,

flange immersion heaters are ideal for applications requiring higher kilowatts.

You can custom configure your flange heater with 3 inch through 14 inch ANSI flange sizes via Preciseheater’s Visual Designer tool on preciseheater.com.

The tool will guide you through all of the steps required to quickly configure and order your heater.

Preciseheate flange heaters are made with PRECISEHEATER™ tubular elements brazed or welded to a flange.

Performance Capabilities

• Watt densities up to 120 W/in2 (18.6 W/cm2)

• UL® and CSA component recognition up to 480VAC

• Alloy 800/840 sheath temperatures up to 1600°F (870°C)

• Passivated 316 stainless steel sheath temperatures up to

1200°F (650°C)

• 304/316 stainless steel sheath temperatures up to

1200°F (650°C)

• Steel sheath temperatures up to 750°F (400°C)

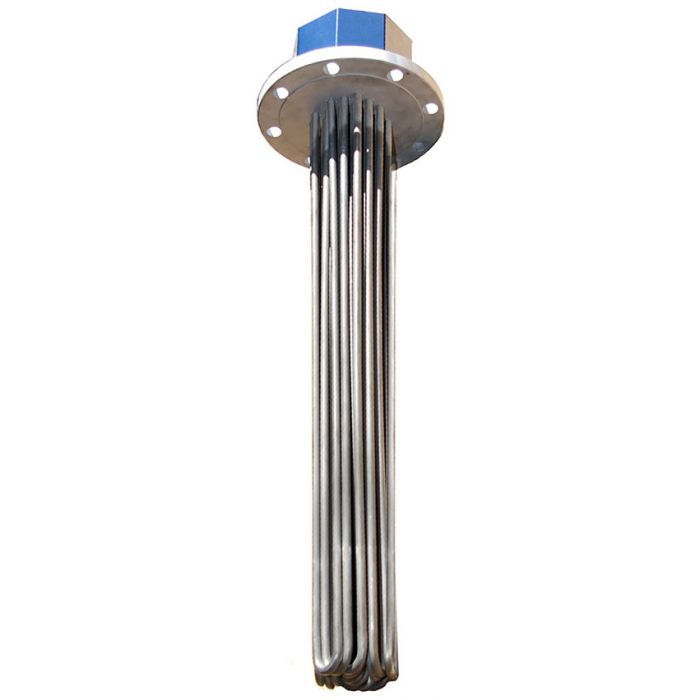

33 inch, 12KW, 48 watt per square inch flange heater. Suitable for heating process water and mild solutions.

Titanium/316SS/Incoloy sheath element (other sheath material available)
Titanium/316SS/Incoloy thermowell
150lb. flange (300lb. available)
1 or 3 phase
208 to 600 volt
N1, N4 and N7 Terminal housing options

For heavily corrosive applications, please call. Other sheath material, such as titanium, inconnel, monel and etc., are available.

Optional Flange Heater Configurations:

T1, T2 and T3 Thermostats
Process Thermocouples: J, K or 100 ohm RTD
Hi-Limit over temp thermocouple clamped to element sheath: J or K
