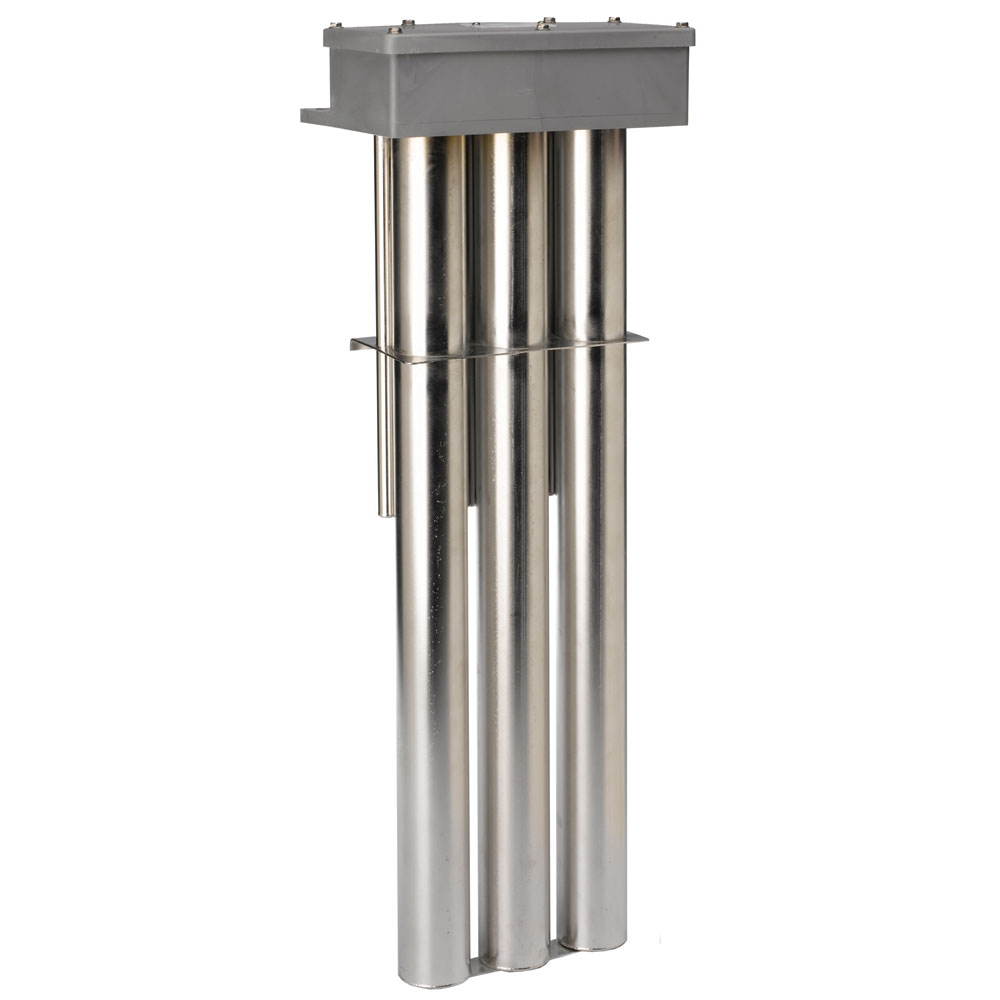

Metal Triple Tube Style Plating Immersion Heater
These heaters – the 3P, 3S, 3F, and 3T series – are built with three side-by-side elements and fit easily next to the wall of a tank. The standard wiring is three-phase, but single-phase is available. They have a watt density of 35 W/in².

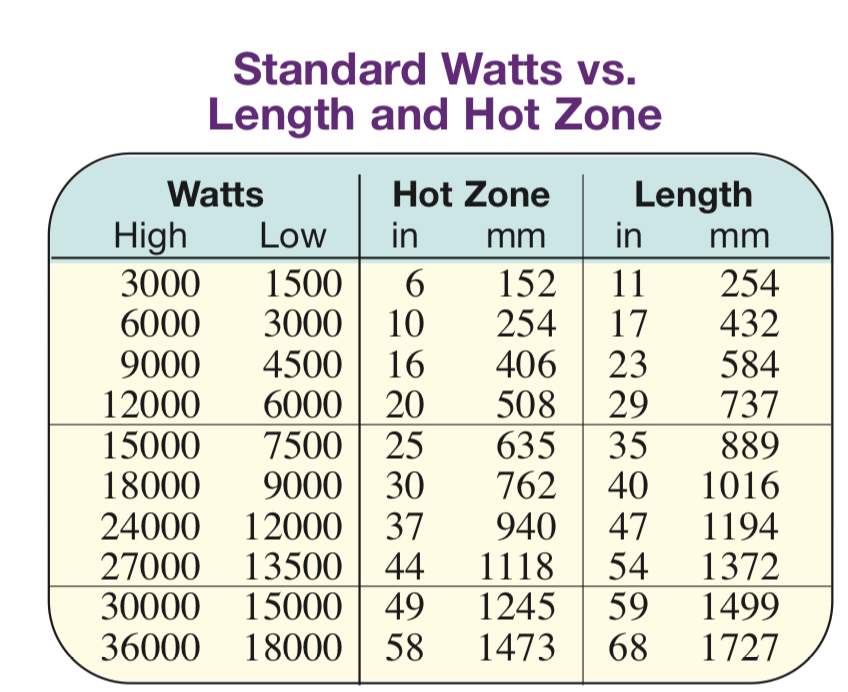

Select a heater below by wattage and sheath material to go to an ordering page, where you can choose voltage and other options. If you don't know what sheath material you need, you can use our Material Selector.
Design Features for TMM2
T1 thermal fuse protection standard; T2 bi-metal switch optional
Grounded for safety
Vapor-tight polypropylene terminal enclosure with universal mounting flange
Standard 3-ft. flexible PVC liquid-tight conduit
120, 240, 480 volts standard as listed — other voltages available
Longer lengths available; consult Tempco
For plating tanks, phosphatizing and concentrated aqueous solutions. Check compatibility guide on pages 11-88 and 11-89 and with chemical supplier for proper sheath material selection.
Design Features
✴ 18 and 35 watts/in2 (2.8 and 5.5 watts/cm2) for long service life
✴ Low watt density for extended service
✴ Heavy duty, long lasting construction
✴ T1 thermal fuse protection standard; T2 bi-metal switch optional
✴ Grounded for safety
✴ UL listed except plain steel; for US and Canada
✴ Vapor-tight polypropylene terminal enclosure with universal
✴ Standard 3-ft. flexible PVC liquid-tight conduit
✴ Standard design includes a common wiring terminal enclosure with a single conduit hub for external connections; power wiring from the three tubes can be configured single- or three-phase.
✴ 120, 208, 220, 230,240, 380,400,415,480,600 volts standard as listed — other voltages available
✴ Longer lengths available; consult Precise Heater
Material
A – Steel
B – 304 SS
C – 316 SS
T – Titanium
