CE Conductive Liquid Level Control
Level probes & Float Switches(PP/PVDF)
Provides automated control and consistent liquid levels in most conductive aqueous processes, waste treatment tanks and when leak detection is required.
Adds protection against damage and tank fires associated with low-level conditions.
Probe enclosure: vapor tight, flame retardant, polyproylene head with 10-foot (3m) flexible cord and quick connect plug for easy connection to remote circuitry.

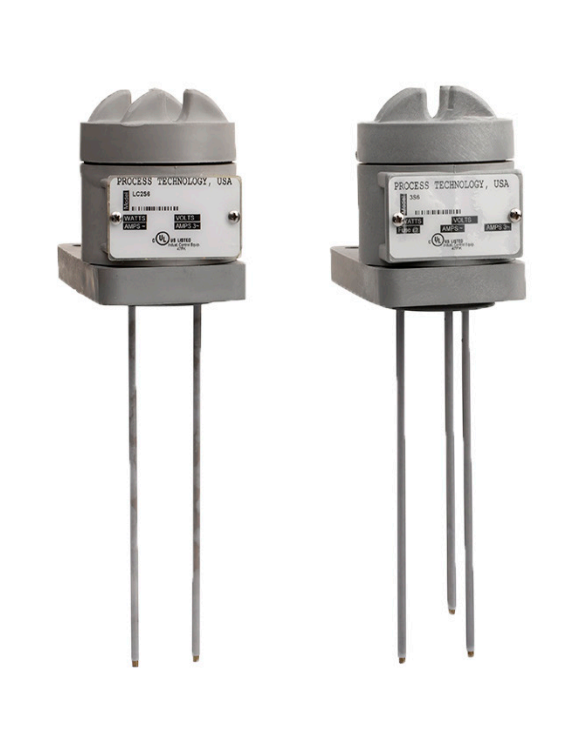

Two probe units (LP-2): for single point control. Multi probe units (LP-3): for two-point control and refill/pump down applications. 4,5 or 6-probe devices for multiple level control applications,
LCBA5 - Level switch electronics (only) mounted in plastic enclosure. 2-probe units
Electronic Assembly field selectable voltage 120/240V.
LCBE5 - Level switch electronics (only) mounted in plastic enclosure. 3-probe units
Electronic Assembly field selectable voltage 120/240V.
Control enclosure: gasketed NEMA 1, IP21 flame retardant, polypropylene box with stainless steel hardware.
*Specify probe material: (S) = STAINLESS STEEL, (T) = TITANIUM, (H) = HASTELLOY C, (G) = GRAPHITE (not field trimmable). (FLUOROPOLYMER (PTFE) COVERED STANDARD)
Features and Benefits:
IMPROVES PROCESS CONTROL:
Provides automated control and consistent liquid levels in most conductive aqueous processes, waste treatment tanks and when leak detection is required.
Adds protection against damage and tank fires associated with low-level conditions.
Two probe units: for single point control.
Multi probe units: for two-point control and refill/pump down applications.
CORROSION RESISTANT PROBES:
Fluoropolymer (PTFE) covered: 316 stainless steel, titanium, Hastelloy C and graphite tipped Hastelloy probe materials.
Lengths: up to 48 inches (1220mm) standard.
Field trimmable (except graphite probes).
CORROSION RESISTANT ENCLOSURES:
Control enclosure: gasketed NEMA 1, IP21 flame retardant, polypropylene box with stainless steel hardware.
Probe enclosure: vapor tight, flame retardant, polypropylene head with 10-foot (3m) flexible cord and quick connect plug for easy connection to remote circuitry.
CERTIFICATIONS:cULus and CE.
CAPACITIES:
Relay rating: 10-amps at 120 to 240 volts, 50/60Hz, single pole, double throw.
Sensing output: 14.5 VAC.
Ambient temperature range: 0°F (-18°C) to 104°F (40°C).
Maximum solution resistance: 70,000 ohm-CM.
Single phase only.
SAFETY FEATURES:
Ground connection on circuit board.
Minimal AC sensing current has no affect on plating processes.
OPTIONS AVAILABLE (consult factory):
Probe lengths up to 20-foot (6m).
LC circuit board can be pre-wired into combination controls.
Fluid stilling chambers.
Longer probe cords.
Probe cord extensions for existing units.
4, 5 or 6-probe devices for multiple level control applications.
