Products Product Details

You are here : Home → Products → Immersion Coils Heat Exchangers > PTFE Immersion Coils Exchanger

Inline Fluoropolymer Chemical Heat Exchangers

Spec:

Scope:

Availability: 2021 - 05 - 12

Describe:

Explain:

Catalog Download

Inquiry

Features

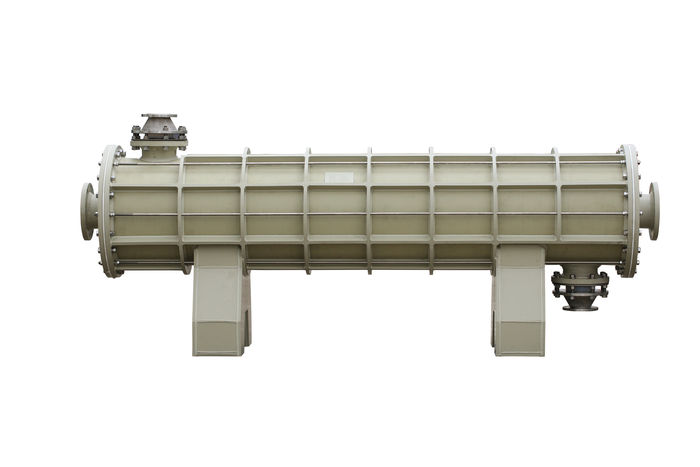

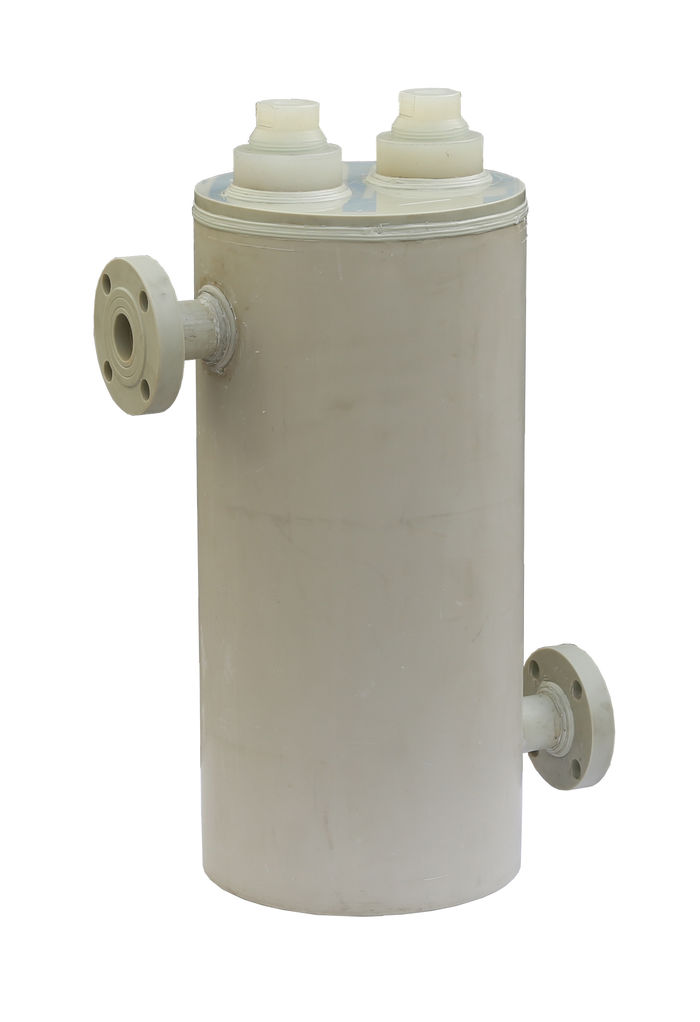

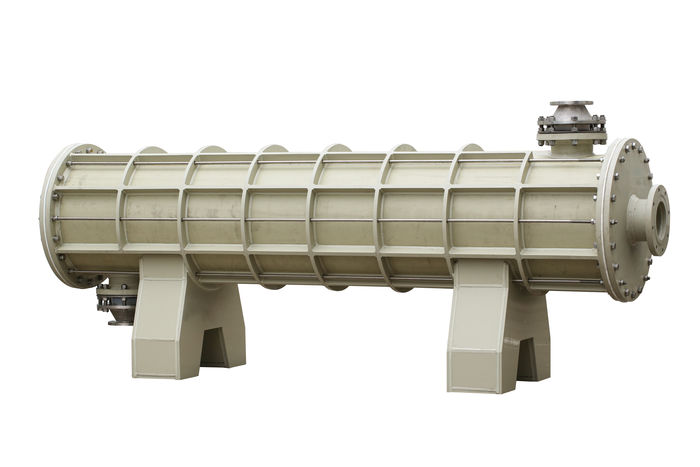

Inline Fluoropolymer Chemical Heat Exchangers:

Inline PTFE Heat Exchangers are designed for Heating and Cooling highly corrosive and high purity fluids

SHELL & TUBE TYPE

PTFE Tube Bundles of 30 to 1,200 Tubes

Tube Diameters Ranging from 1/8″ to 3/8″

Shell Diameters Ranging from 3″ to14″

Shell Material: Available with Carbon Steel, PTFE Lined CT and SS Shell

Industry: Semiconductor Industry, Fine chemical Industry

Inline Fluoropolymer Chemical Heat Exchangers

Fluoropolymer Inline Heat Exchangers
Exchange Area (Sq.Ft)	Length In(mm)	DIA In(mm)	PP Shell	PVDF Shell
6.5	15.7 (400)	10 (255)	XCH6.5-***	XPH6.5-***
13	15.7 (400)	12 (305)	XCH13-***	XPH13-***
20	20 (500)	14 (355)	XCH20-***	XPH20-***
30	20 (500)	14 (355)	XCH30-***	XPH30-***
40	24 (600)	14 (355)	XCH40-***	XPH40-***
50	24 (600)	16 (405)	XCH50-***	XPH50-***
60	27.5 (700)	16 (405)	XCH60-***	XPH60-***
70	27.5 (700)	16 (405)	XCH70-***	XPH70-***
80	31.4 (800)	16 (405)	XCH80-***	XPH80-***
90	31.4 (800)	18 (460)	XCH90-***	XPH90-***
100	31.4 (900)	18 (460)	XCH100-***	XPH100-***
110	31.4 (900)	20 (510)	XCH110-***	XPH110-***
120	39 (1000)	20 (510)	XCH120-***	XPH120-***
130	39 (1000)	20 (510)	XCH130-***	XPH130-***
140	43 (1100)	22 (560)	XCH140-***	XPH140-***
150	43 (1100)	22 (560)	XCH150-***	XPH150-***
160	47 (1200)	22 (560)	XCH160-***	XPH160-***

lnine chemical heat exchangers are ideal for one-pass cooling of chemicals dumping to waste stream. This product is also appropriate for heating applications. The system innovatively eliminates high costs associated with water aspiration. Utilizing PP or PVDF housing and fluoropolymer tubing, It is configured for your application with custom sizes available.

Service: In-line chemical heat exchanger with all fluoropolymer wetted surfaces (tubing side) for virtually any wet chemistry application.

Standard Sizes:

• 6.5 ft2 (.65m2) - 160ft2 (20m2) of exchange area

Custom exchange area available, max to 550 ft2 (51m2) exchange area

Standard Features:
• ½-inch (12mm) heavy wall PFA tubing, .030” (0.76mm) thick
• All welded construction (shell)
• 10-22 inch (255-560mm) diameter Polypropylene/PVDF shell
• Internally baffled for enhanced heat exchanger performance
• “U” factor (depending on flow rate): 25-50 BTU/(hr x ft2 x °F) = 142-284 J/(s x m2 x °C)
• Shell-side drain connection

Fluid Connections:
• Fluid (tube): ½-inch (12mm) male flare PFA/PTFE
• Shell: Flange connection according to customer request
• Shell drain: ¼-inch (6mm) male flare PFA/PTFE

Maximum Pressure/Temperature:
• Tube (PFA): 35 PSIG (241 kPa) at 120ºC (250ºF)
• Shell (PP): 30 PSIG (206 kPa) at 82ºC (180ºF)
• Optional shell (PVDF): 30 PSIG (206 kPa) at 135ºC (275ºF)

Warranty: 2 years

Options:
• Custom sizes based on application
• PVDF shell

Custom exchange area and size are available
