Products Product Details

You are here : Home → Products → Immersion Coils Heat Exchangers > PTFE Immersion Coils Exchanger

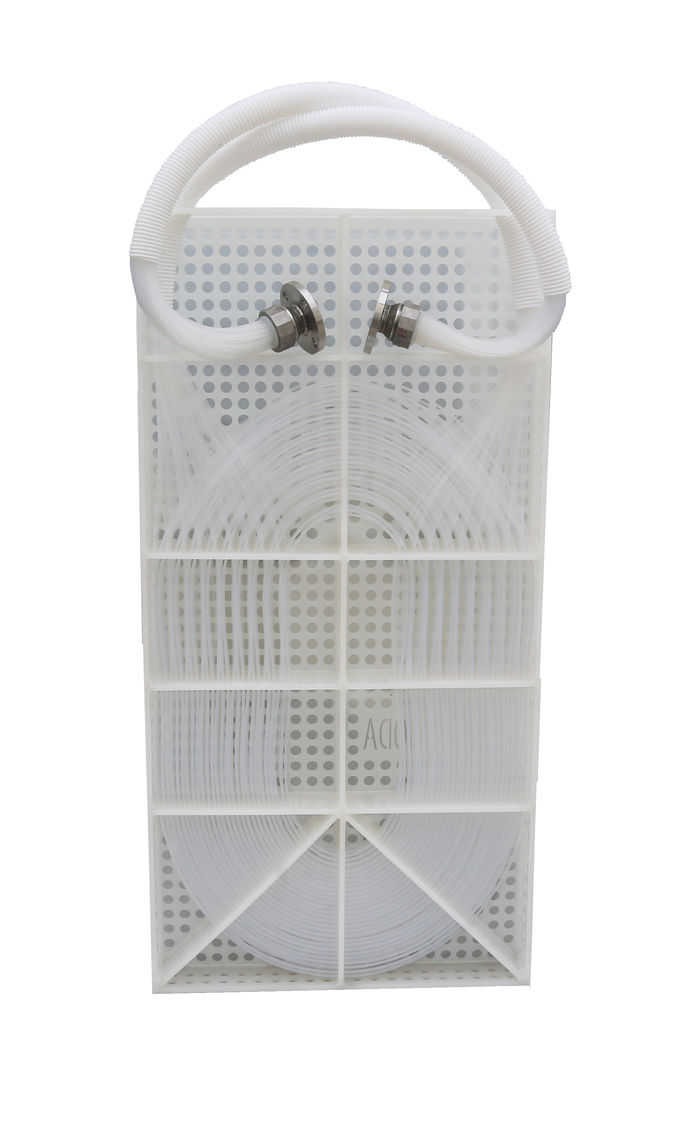

Teflon(Fluoroplastic) Immersion Heat Exchangers

Spec:

Scope:

Availability: 2021 - 05 - 12

Describe:

Explain:

Teflon(Fluoroplastic) Immersion Heat Exchangers:The products and applications that depend on the characteristics of Teflon™ fluoropolymers Heat Exchanger range from aerospace to energy, cookware to textiles, semiconductors to smart cities. Fluoropolymers address the myriad issues faced by manufacturers and processorsTeflon(Fluorpolymer) Heating and cooling coilsExchange areaSq.FtConnectionsInchLengthIn./mmWidthIn./mmThicknessIn./mmModel No.5.53/4 FNPT11.5(292)11.5(292)2(51)XC-12-12113/4 FNPT15.5(394)15.5(394)2(51)XC-16-1616.53/4 FNPT17.5(445)17.5(445)2.36(60)XC-18-18223/4 FNPT19.7(500)15.7(400)2.36(60)XC-20-1627.53/4 FNPT19.7(500)19.7(500)2.36(60)XC-20-20333/4 FNPT23.5(597)23.5(597)2.36(60)XC-24-2438.53/4 FNPT27.5(700)23.5(597)2.36(60)XC-28-24443/4 FNPT27.5(700)27.5(700)2.76(70)XC-28-2849....

Catalog Download

Inquiry

Features

Teflon(Fluoroplastic) Immersion Heat Exchangers:

The products and applications that depend on the characteristics of Teflon™ fluoropolymers Heat Exchanger range from aerospace to energy, cookware to textiles, semiconductors to smart cities. Fluoropolymers address the myriad issues faced by manufacturers and processors

Fluoroplastic Immersion Heat Exchangers

Teflon(Fluorpolymer) Heating and cooling coils
Exchange area Sq.Ft	Connections Inch	Length In./mm	Width In./mm	Thickness In./mm	Model No.
5.5	3/4 FNPT	11.5(292)	11.5(292)	2(51)	XC-12-12
11	3/4 FNPT	15.5(394)	15.5(394)	2(51)	XC-16-16
16.5	3/4 FNPT	17.5(445)	17.5(445)	2.36(60)	XC-18-18
22	3/4 FNPT	19.7(500)	15.7(400)	2.36(60)	XC-20-16
27.5	3/4 FNPT	19.7(500)	19.7(500)	2.36(60)	XC-20-20
33	3/4 FNPT	23.5(597)	23.5(597)	2.36(60)	XC-24-24
38.5	3/4 FNPT	27.5(700)	23.5(597)	2.36(60)	XC-28-24
44	3/4 FNPT	27.5(700)	27.5(700)	2.76(70)	XC-28-28
49.5	3/4 FNPT	31.5(800)	31.5(800)	2.76(70)	XC-32-32
55	1 FNPT	33.9(860)	33.9(860)	2.76(70)	XC-34-34
60.5	1 FNPT	35.5(900)	31.5(800)	2.76(70)	XC-36-32
66	1 FNPT	35.5(900)	33.9(860)	2.76(70)	XC-36-34
71.5	1 FNPT	35.5(900)	35.5(900)	2.76(70)	XC-36-36
77	1 FNPT	39.5(1000)	33.9(860)	3.15(80)	XC-40-34
83.5	1 FNPT	39.5(1000)	35.5(900)	3.15(80)	XC-40-36
89	1 FNPT	39.5(1000)	39.5(1000)	3.15(80)	XC-40-40
94.5	1 FNPT	39.5(1000)	39.5(1000)	3.15(80)	XC-41-41
99	1 FNPT	43.3(1100)	39.5(1000)	3.15(80)	XC-43-40
104	1-1/2 FNPT	43.3(1100)	39.5(1000)	3.54(90)	XC-44-40
110	1-1/2 FNPT	45.3(1150)	39.5(1000)	3.54(90)	XC-45-40
115	1-1/2 FNPT	47.2(1200)	39.5(1000)	3.54(90)	XC-47-40
120	1-1/2 FNPT	47.2(1200)	39.5(1000)	3.54(90)	XC-48-41

For heating or cooling of most aqueous acid and alkaline solutions.

All wetted parts of fluoropolymer (FEP, PFA or PTFE) construction.
Heavy duty CPVC mounting bracket.
2 to 4 inch thick perforated guard helps protect the coil from damage.

Heavy wall tubing improves circulation and minimizes pressure drop.All coils constructed of ½-inch (13mm) tubing

Integral Flexible inlet and outlet manifolds for single point connections greatly reduce the potential for leaks and simplify installation.

Standard coils are made from FEP (Fluorinated Ethylene Propylene) and rated up to 70 PSI steam service.

PFA (Perfluoroakoxy resin) coils are available for steam service up to 90 PSI.
10 PSI minimum steam pressure required for operation.
Consult factory regarding pressure reduced applications.

Eliminates stray currents in the tank.

5.5 ft2 to 120 ft2 of exchange area standard.

Anti-floatation brackets.

Special sizes.

Special manifold configurations.

L-shaped configurations for bottom heat applications.

Dual coils for both heating and cooling.

NOTE: Vacuum breakers recommended for fluoropolymer heat exchanger steam heating installations. Please consult factory regarding pressure reduced steam applications.

Custom exchange area and size are available
